Programmable Controller U - Shaped Wire Repeated Bending Tester For Mobile Cable

Product name : U-shaped Wire Repeated Bending Tester

Driving mode : ac servo motor, original Japanese gear belt;

Control system : Taiwan veron 7-inch color touch screen, programmable controller.

Test travel : 0-10 meters

Test speed : 0-8m/S (fastest linear speed) 0-100 times/min

Test acceleration : 0-40m/S

Test station : 2 stations

General counter : 1~999999999 set

Working power supply : 3 phases AC380V±10%, 50HZ, 15A;

Weight : about 350kg

Brand Name : ZL

Model Number : ZL-1046

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : Programmable Controller U-shaped Wire Repeated Bending Tester is packaged within wooden case.

Contact Now

Programmable Controller U-Shaped Wire Repeated Bending Tester For Mobile Cable

Product Overview

This programmable controller U-shaped wire repeated bending tester is designed for mechanical life testing of mobile wires and cables, simulating motion with manipulators and mobile devices to assess mechanical durability.

\nCompliance Standard: Enterprise standard for mobile cable, Article 2.3 U-shaped foldback test requirements\n

\nApplication Scope: Mechanical life testing for examining mobile wires and cables\n

Key Features

Safety protection with glass observation window and moving parts cover plate
Emergency stop button for immediate machine shutdown
High automation and efficiency with reasonable structure
Ideal for wire manufacturers and quality control organizations

Technical Specifications

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Parameter	Specification
Control System	Taiwan Veron 7-inch color touch screen, programmable controller
Driving Mode	high-performance AC servo motor, original Japanese gear belt
Test Travel	0-10 meters (moving distance of test piece: 0-5 meters, maximum slide table distance: 5 meters)
Cable Clamp Bending Radius	25mm, 50mm, 75mm, 100mm adjustable (requires different drag chain sizes)
Test Speed	0-8m/S (fastest linear speed), 0-100 times/min (maximum speed for small trips)
Test Acceleration	0-40m/S
Test Station	2 stations, each within W250mm range, total mass \u226410kg
General Counter	1-999,999,999 settable, stops at set value
Sub-counter	Each station counts independently from 1-999,999,999 continuously
Alarm Detection	Line core breakage detection with sound and light alarm
Internal Resistance Testing	Switchable without stopping machine (10 test interfaces, optional internal resistance tester)
Power Supply	Three phases AC380V\u00b110%, 50HZ, 15A
Dimensions	Approximately W6000mm \u00d7 D750mm \u00d7 H1500mm
Weight	Approximately 350kg

Product Tags:

cable testing device

cable flex tester

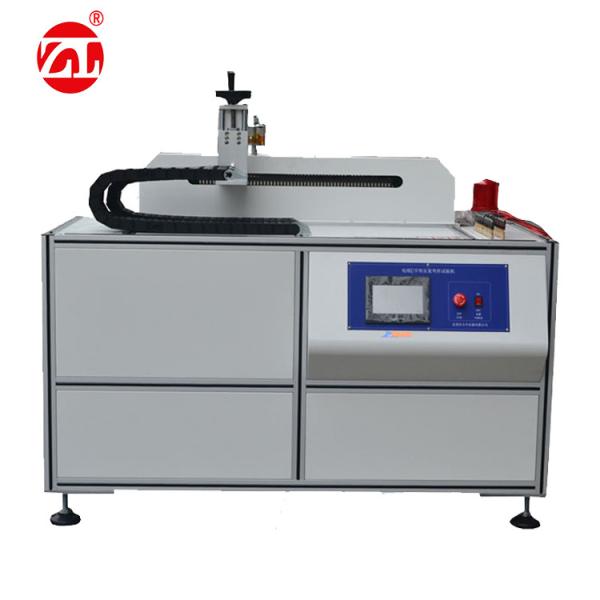

Programmable Controller U - Shaped Wire Repeated Bending Tester For Mobile Cable Images
